Honda Fit: VIN, Engine, (Motor), Transmission Numbers, and Paint Codes

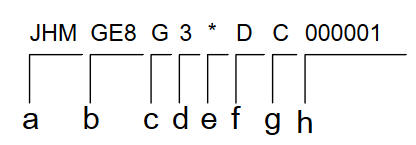

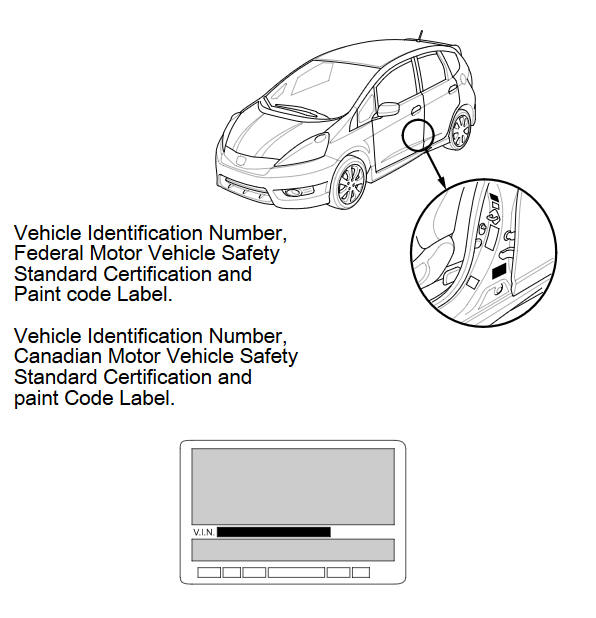

Vehicle Identification Number
|
a. |
Manufacturer, Make, and Type of Vehicle |
|||
|
JHM: |
Honda Motor Co., Ltd. |
|||
|
LUC: |
Honda Automobile (China) Co., Ltd. |
|||
|
b. |
Line, Body, and Engine Type |
|||
|
GE8: |
Fit/L15A7 |
|||
|
c. |
Body Type and Transmission Type |
|||
|
G: 4-door Hatchback/5-speed Manual |
||||
|
H: 4-door Hatchback/5-speed Automatic |
||||
|
d. |
Vehicle Grade (Series) |
|||
|
USA models |
Canada models |
|||
|
3: Fit (Base) |
2: DX |
|||
|
5: Fit Sport |
3: DX-A |
|||
|
6: Sport Navi |
5: LX |
|||
|
7: Sport |
||||
|
e. |
Check Digit |
|||
|
f. |
Model Year |
|||
|
D: '13 |
||||
|
g. |
Factory Code |
|||
|
C: Saitama Factory in Japan 3: Huangpu Guangzhou Factory in China |
||||
|
h. |
Serial Number |
|||

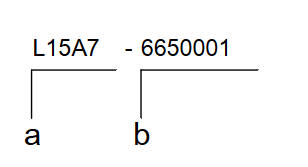

Engine Number
|
a. |
Engine Type |
|
|
L15A7: |
1.5 L SOHC i-VTEC Sequential Multiport Fuel-injected engine |
|
|
b. |
Serial Number |
|
|
5200001-: Produced in China (Canada models) |
||
|
6650001-: Produced in Saitama (M/T model) |
||
|
6900001-: Produced in Saitama (A/T model) |
||
Transmission Number
|
a. |
Transmission Type |
|
|
SP4M: 5-speed Manual |
||
|
CKWM: 5-speed Manual (Produced in China) |
||
|
MP5A: 5-speed Automatic |
||
|
GPVA: 5-speed Automatic (Produced in China) |
||
|
b. |
Serial Number |
|
|
2000001-: CKWM, GPVA |
||
|
4000001-: MP5A |
||
|
7000001-: SP4M |
||

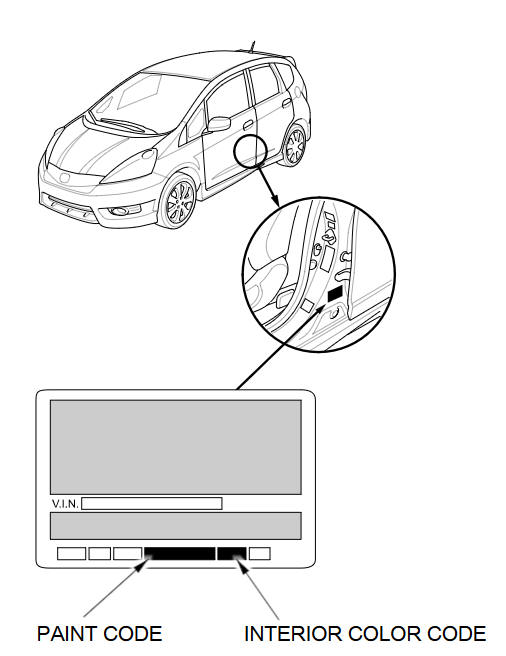

Paint Code
|
Code |
Color |
USA models |
Canada models |
|
NH-578 |
Taffeta White |
в—‹ |
в—‹ |
|
NH-700M |
Alabaster Silver Metallic |
в—‹ |
|
|
NH-731P |
Crystal Black Pearl |
в—‹ |
в—‹ |
|
NH-737M |
Polished Metal Metallic |
в—‹ |
в—‹ |
|
BG-59M |
Blue Raspberry Metallic |
в—‹ |
в—‹ |
|
B-553P |
Vortex Blue Pearl |
в—‹ |
в—‹ |
|
R-81 |
Milano Red |
в—‹ |
в—‹ |
|
YR-592M |
Orangeburst Metallic |
в—‹ |
|
|
RP-45P |
Midnight Plum Pearl |
в—‹ |
