Honda Fit: Reverse Shift Fork Clearance Inspection (M/T)

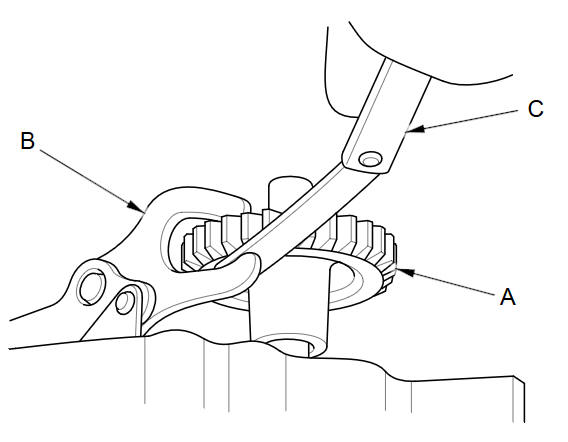

  1. Measure the clearance between the reverse idler gear (A) and the reverse shift fork (B) with a feeler gauge (C). If the clearance is more than the service limit, go to step 2.

    Standard:

    1.30пјЌ1.90 (0.051пјЌ0.074 in)

    Service Limit:

    2.5 mm (0.098 in)

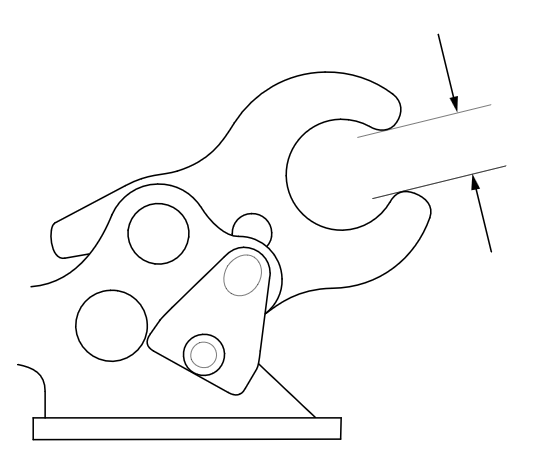

  1. Measure the width of the reverse shift fork.

    • If the width is not within the standard, replace the reverse shift fork.

    • If the width is within the standard, replace the reverse idle gear.

    Standard:

    13.5пјЌ13.8 mm (0.531пјЌ0.543 in)
