Honda Fit: A/T Differential Backlash Inspection (A/T)
-

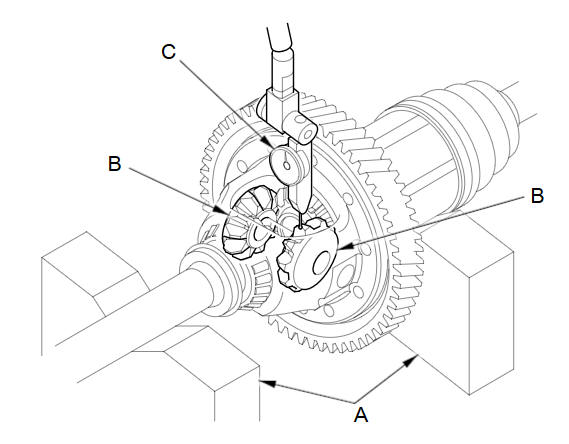

Install the driveshaft and intermediate shaft into the differential assembly, and place the axles on V-blocks (A).
-
Measure the backlash of the pinion gears (B) with a dial indicator (C).
Standard:
0.05-0.15 mm (0.002-0.006 in)
-
If the backlash is out of standard, replace the differential carrier.
