Honda Fit: Tire and Loading Information Label
The label attached to the driver’s doorjamb provides necessary tire and loading information.

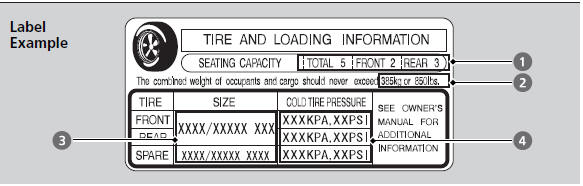

The tire and loading information label attached to the driver’s doorjamb contains: 1 The number of people your vehicle can carry.
2 The total weight your vehicle can carry. Do not exceed this weight.
3 The original tire sizes for front, rear, and spare.
4 The proper cold tire pressure for front, rear, and spare.
