Honda Fit: Driveshaft Installatio

NOTE: Before starting installation, make sure the mating surfaces of the joint and the splined section are clean.

  1. Apply about 5 g (0.18 oz) moly 60 paste (P/N 08734-0001) to the contact area (A) of the outboard joint and the front wheel bearing.

    NOTE: The paste helps to prevent noise and vibration.

  1. Install a new set ring (A) into the set ring groove (B) of the driveshaft inboard joint (except A/T model right driveshaft).

  1. Install a new set ring (A) into the set ring groove (B) of the intermediate shaft (A/T model).

  1. Apply 0.5-1.0 g (0.018-0.035 oz) of super high temp urea grease (P/N 08798-9002) to the whole splined surface (A) of the right driveshaft. After applying grease, remove the grease from the splined grooves at intervals of 2-3   splines and from the set ring groove (B) so that air can bleed from the intermediate shaft.

  1. Clean the areas where the driveshaft contacts the differential thoroughly with solvent, and dry them with compressed air.

    NOTE: Do not wash the rubber parts with solvent.

  1. Insert the inboard end (A) of the driveshaft into the differential (B) or intermediate shaft (C) until the set ring (D) locks in the groove (E).

    NOTE: Insert the driveshaft horizontally to prevent damaging the oil seal.

  1. Install the outboard joint (A) into the front hub (B) on the knuckle.

  1. Wipe off any grease contamination from the ball joint tapered section and threads, then install the knuckle (A) onto the lower arm (B). Be careful not to damage the ball joint boot .

    NOTE: Make sure the ball joint boot is not damaged or cracked.

  2. Install a new castle nut (C) and torque the castle nut to the lower torque specification, then tighten it only far enough to align the slot with the ball joint pin hole. Install the lock pin (D) into the pin hole as shown.

    NOTE: Do not align the nut by loosening it.

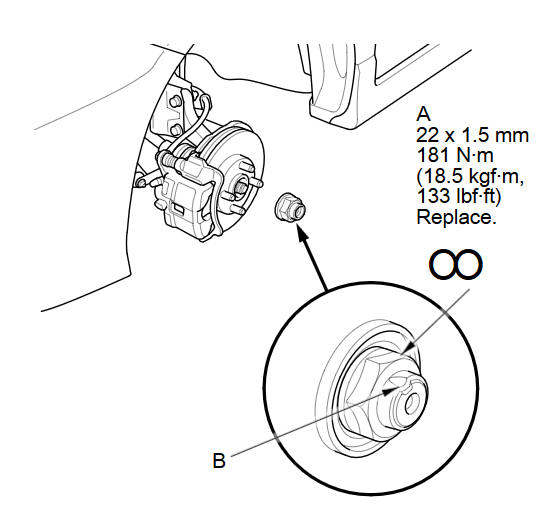

  1. Apply a small amount of engine oil to the seating surface of a new spindle nut (A).

  1. Install the spindle nut, then tighten it. After tightening, use a drift to stake the spindle nut shoulder (B) against the driveshaft.

  2. Clean the mating surfaces of the brake disc and the wheel, then install the front wheel.

  3. Turn the front wheel by hand, and make sure there is no interference between the driveshaft and surrounding parts.

  4. Refill the transmission with the recommended transmission fluid:

    • Manual transmission

    • Automatic transmission

  5. Lower the vehicle.

  6. Check the wheel alignment, and adjust it if necessary.

  7. Test-drive the vehicle.
