Drain the transmission fluid. Reinstall the drain plug with a new sealing washer.
Remove the right driveshaft.
Remove the shift cable cover (A).

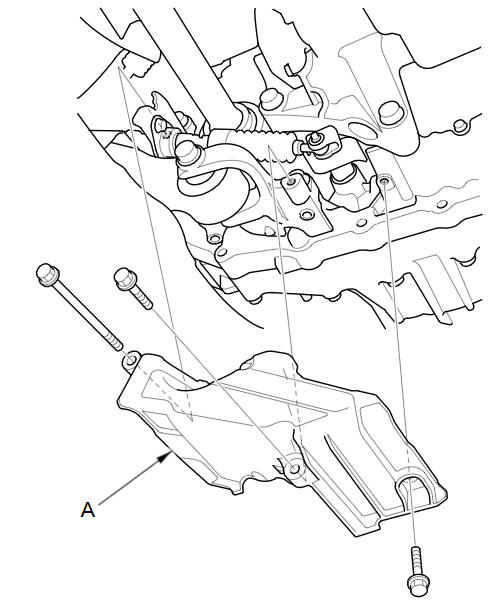

Remove the heat shield (A).

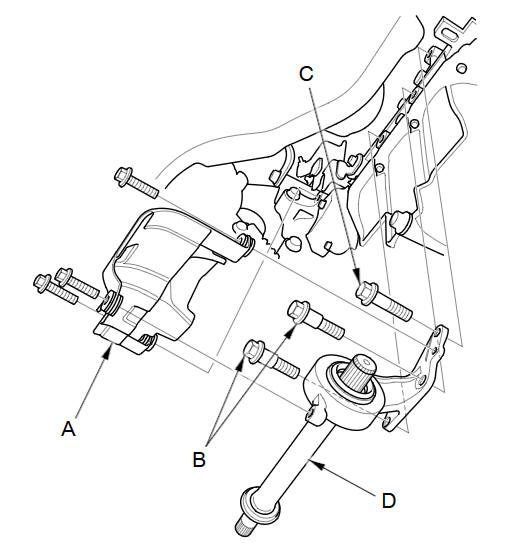

Remove the two dowel bolts (B) and the flange bolt (C).
Remove the intermediate shaft (D) from the differential. Hold the intermediate shaft horizontally until it is clear of the differential to prevent damaging the oil seal.
Cylinder Head Cover Removal
Remove the intake manifold chamber.
Disconnect the four ignition coil connectors (A).
Remove the harness holder (B) and the breather hose (C).
Remove ...
Manual Transmission Removal (M/T)
Special Tools Required
Universal Lifting Eyelet 07AAK-SNAA120
1.8 Support Bolt 07AAK-SNAA500
Engine Support Hanger, A and Reds AAR-T1256
*: Reds engine support hanger AAR-T1256 is available th ...
Starting System
Starter Overhaul
Exploded View
NOTE: Refer to the Exploded View if needed during this procedure.
Armature Inspection and Test
Remove the starter.
Inspect the armature f ...
