Honda Fit: Pilot Bearing Replacement

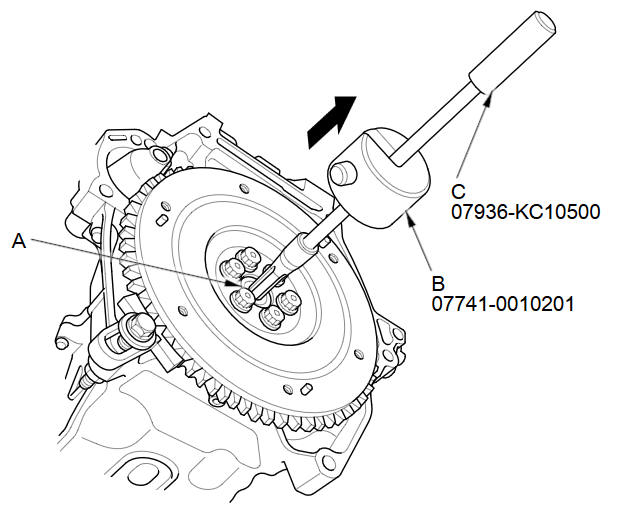

  1. Remove the crankshaft pilot bearing (A) using the remover weight (B), and the 15 mm bearing remover shaft set (C).

  1. Install a new pilot bearing (A) into the crankshaft using the 15 x 135L driver handle (B) and the 28 x 30 mm   bearing driver attachment (C).
