Honda Fit: A/T Secondary Shaft Sealing Ring Replacement (A/T)
The sealing rings are synthetic resin with chamfered ends. Check the condition of the sealing rings, and replace them only if they are worn, distorted, or damaged.
-

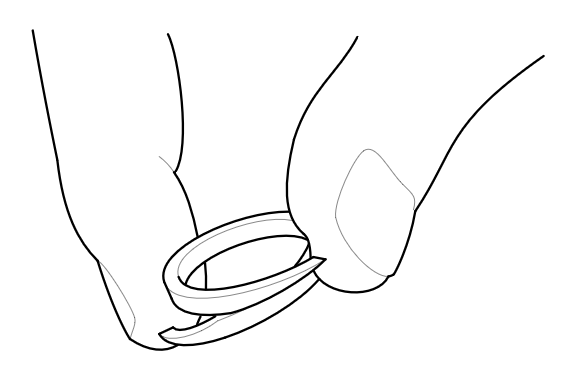

For a better fit, squeeze sealing rings together slightly before installing them.
-
Apply ATF to the new sealing rings, then install them on the secondary shaft.
-

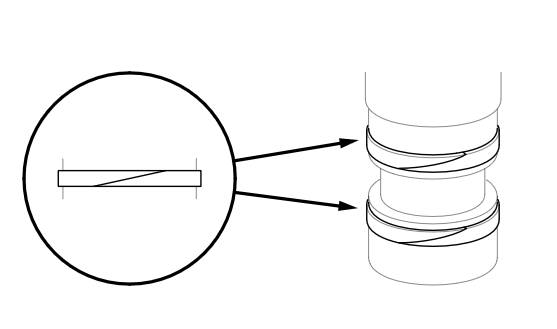

After installing the sealing rings, verify the following:
-
The rings are fully seated in the groove.
-
The rings are not twisted.
-
The chamfered ends of the rings are properly joined.
-
