Honda Fit: Transmission End Cover Air Check Valve Inspection and Replacement (A/T)

Second generation (2007-2022) / Honda Fit 2007-2022 Repair Manual / Powertrain / Transmission/Transaxle / Automatic / Transmission Unit / Transmission End Cover Air Check Valve Inspection and Replacement (A/T)

NOTE:

  1. Check the air check valve filter for clogging. If the filter is clogged, remove the air check valves (A), and clean the filter thoroughly by pouring new ATF. Do not blow out the filter with compressed air. If the filter or check valve (ball) is clogged or damaged, replace the air check valve.

    NOTE:

    • Replace the sealing washer with a new one whenever the air check valve (came with the sealing washer) is removed or replaced.

    • It is no need to install the sealing washer with the air check valve that came without the washer.

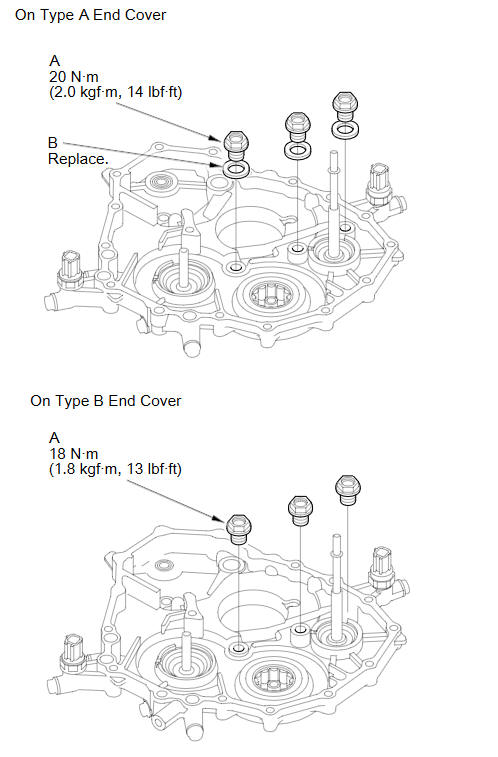

  1. Install the air check valve (A):

    • On type A end cover: Install the air check valve and a new sealing washer (B).

    • On type B end cover: Install the air check valve. Do not install the sealing washer.

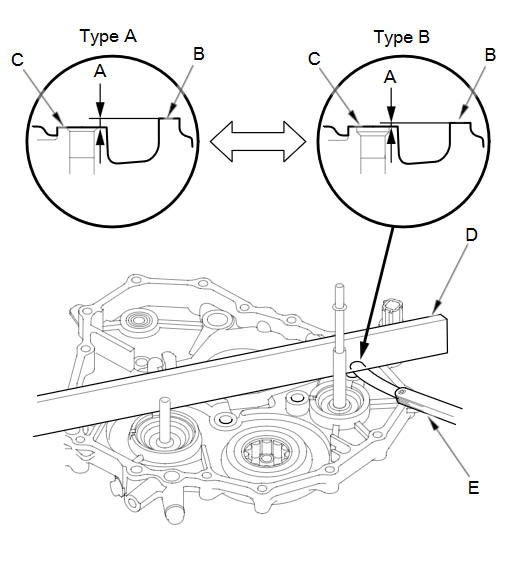

  1. If the classification of the end cover between types A and B is uncertain, measure the clearance (A) between surface (B) of the end cover and installed position (C) of the 2nd check valve with a straight edge (D) and a feeler gauge (E), and determine the end cover of A or B with the measurement.

    Measurement

    Type A End Cover:

    2.00 mm (0.078 in)

    Type B End Cover:

    0.15 mm (0.005 in)
