Honda Fit: Torque Converter Housing Countershaft Bearing Replacement (A/T)

Second generation (2007-2026) / Honda Fit 2007-2026 Repair Manual / Powertrain / Transmission/Transaxle / Automatic / Torque Converter / Torque Converter Housing Countershaft Bearing Replacement (A/T)

Special Tools Required

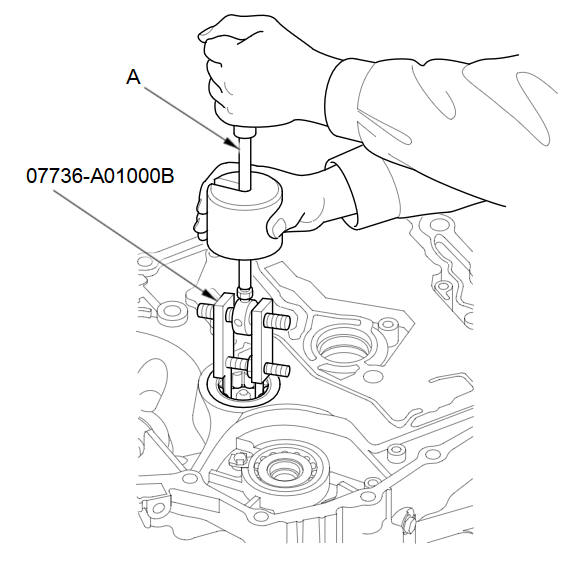

  1. Remove the countershaft bearing using the adjustable bearing puller (20пјЌ40 mm) and a commercially available 3/8 ''-16   slide hammer (A).

  1. Install the ATF guide plate (A).

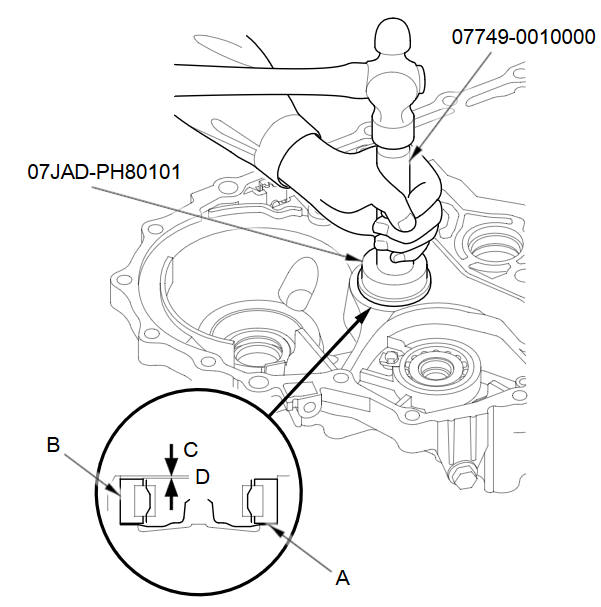

  1. Install the new countershaft bearing (B) in the housing using the driver handle and the oil seal driver attachment (58 mm); install the bearing outer race surface in height (C) of 0.03 mm (0.001 in)   above the housing surface (D). Do not install the bearing exceeding 0.03 mm   (0.001 in) high from housing surface.
