Honda Fit: Shifter Input and Linkage
Paddle Shifter (Downshift Switch) Replacement (A/T)
SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.
-
Remove the steering wheel.
-

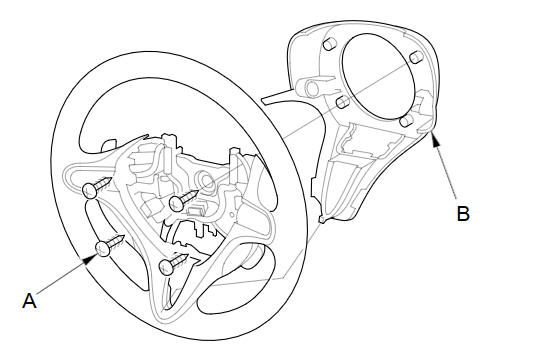

Remove the four screws (A) securing the steering wheel rear cover (B), then remove the steering wheel rear cover.
-

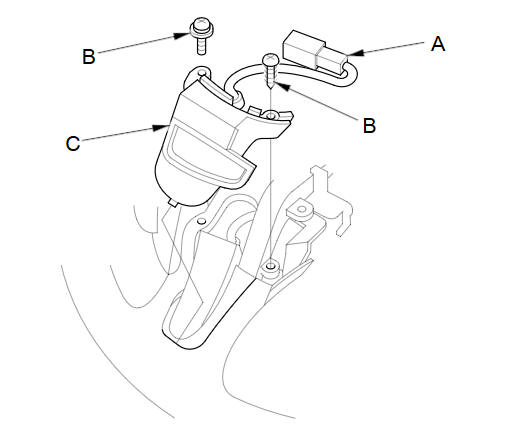

Remove the paddle shifter пјЌ (downshift switch) connector (A) from its holder, and disconnect the connector.
-
Remove the screws (B) securing the paddle shifter пјЌ (C), and remove the paddle shifter пјЌ.
-
Install a new paddle shifter пјЌ on the steering wheel, and secure it with the screws.
-
Connect the paddle shifter пјЌ connector securely, and install the connector in the connector holder.
-
Install the steering wheel rear cover.
-
Install the steering wheel.
