Honda Fit: Transmission End Cover Transmission Fluid Pressure Switch Replacement (A/T)

Second generation (2007-2022) / Honda Fit 2007-2022 Repair Manual / Powertrain / Transmission/Transaxle / Automatic / Automatic / General information / Transmission End Cover Transmission Fluid Pressure Switch Replacement (A/T)

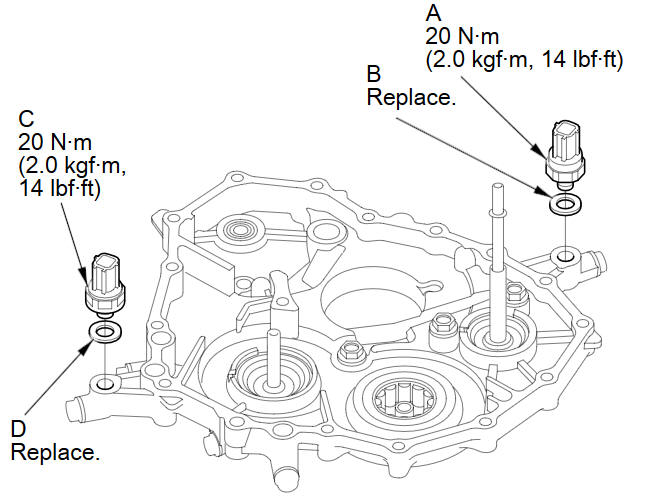

  1. Remove the transmission fluid pressure switch A (2nd clutch) (A).

  1. Make sure there is no water, oil, dust, or foreign particles inside the connector.

  2. Install the new transmission fluid pressure switch A (2nd clutch) and a new sealing washer (B), and tighten the metal part of the switch.

  3. Remove the transmission fluid pressure switch B (3rd clutch) (C).

  4. Make sure there is no water, oil, dust, or foreign particles inside the connector.

  5. Install the new transmission fluid pressure switch B (3rd clutch) and a new sealing washer (D), and tighten the metal part of the switch.
