Honda Fit: A/T Housing Reverse Idler Gear Installation (A/T)
-

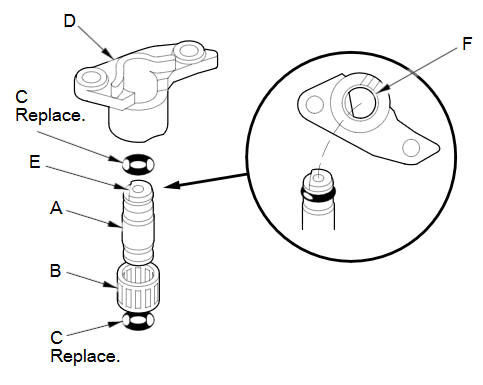

Lightly coat the reverse idler gear shaft (A), the needle bearing (B), and new O-rings (C) with lithium grease.
-
Assemble the new O-rings and the needle bearing on the reverse idler gear shaft, then install the reverse idler gear shaft in the reverse idler gear shaft holder (D). Align the D-shaped cut out (E) of the shaft with the D-shaped area (F) of the holder.
-

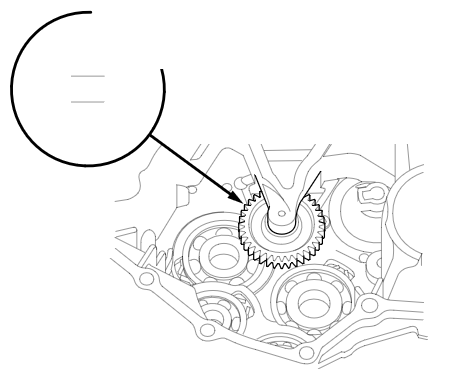

Install the reverse idler gear in the transmission housing in the direction shown.
-

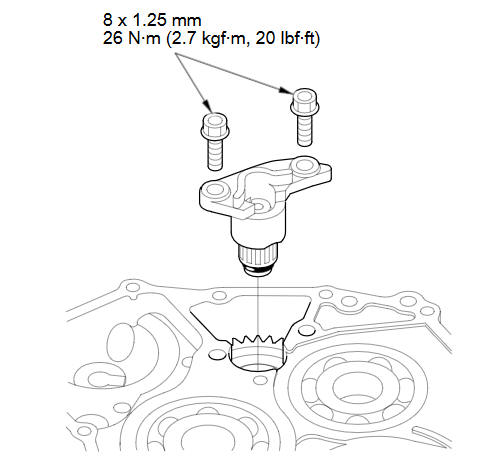

Install the reverse idler gear shaft/holder assembly in the reverse idler gear.
-
Secure the holder with the bolts.
