Honda Fit: A/F Sensor Replacement
Second generation (2007-2026) / Honda Fit 2007-2026 Repair Manual / Powertrain / Internal Combustion Powertrain Control / Engine Control / Engine Control Sensors / A/F Sensor Replacement
Special Tools Required
- O2 Sensor Wrench Snap-on S6176 or equivalent, commercially available
-
Remove the cowl cover and the under-cowl panel.
-

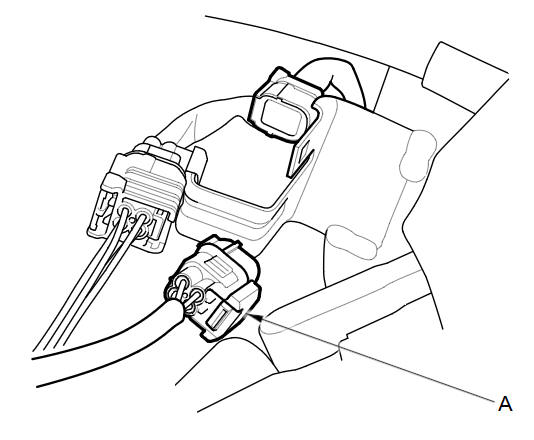

Disconnect the A/F sensor connector (A).
-

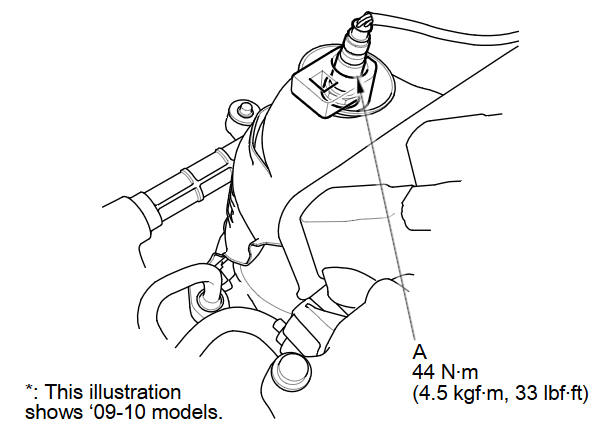

Remove the A/F sensor (A).
-
Install the parts in the reverse order of removal.
