Honda Fit: Rocker Arm Assembly Installation

  1. If the rocker arm assembly is disassembled, reassemble the rocker arm assembly.

  1. Apply engine oil to the end of the valve stem.

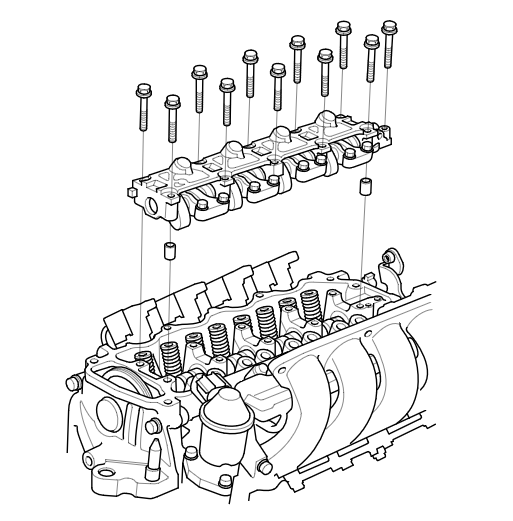

  1. Install the rocker arm assembly.

  1. Tighten each bolts two turns at a time in the sequence.

    Specified Torque

    6 x 1.0 mm



    15 NВ·m (1.5 kgfВ·m, 11 lbfВ·ft)



    9.8 NВ·m (1.0 kgfВ·m, 7 lbfВ·ft)

  2. Adjust the valve clearance.

  3. Install the cylinder head cover.
