Honda Fit: Intermediate Shaft Removal (A/T)
- Drain the transmission fluid. Reinstall the drain plug with a new sealing washer.
-
Remove the right driveshaft.
-

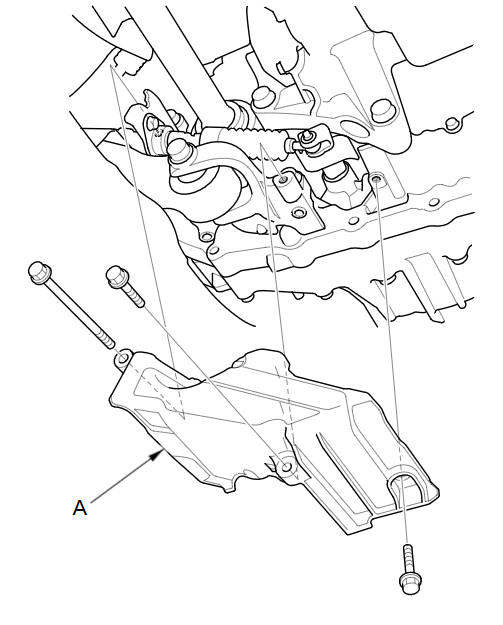

Remove the shift cable cover (A).
-

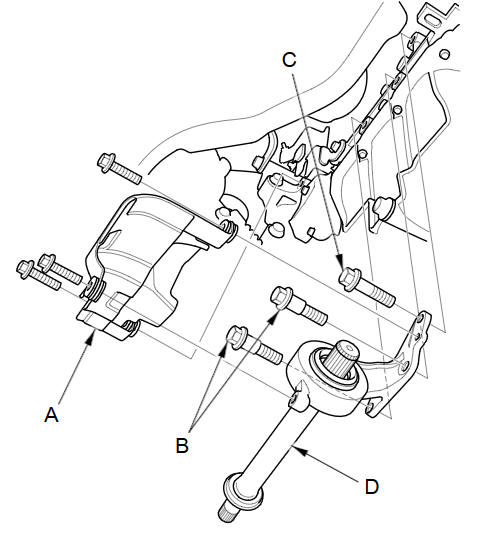

Remove the heat shield (A).
-
Remove the two dowel bolts (B) and the flange bolt (C).
-
Remove the intermediate shaft (D) from the differential. Hold the intermediate shaft horizontally until it is clear of the differential to prevent damaging the oil seal.
