Catalytic Converter   System

Warm Up Three Way Catalytic Converter   (WU-TWC) and Under-floor Three Way Catalytic Converter (Under-floor TWC)

The WU-TWC and the under-floor TWC convert hydrocarbons (HC), carbon monoxide (CO), and oxides of nitrogen (NOx) in the exhaust gas to carbon dioxide (CO2), nitrogen (N2), and water vapor.

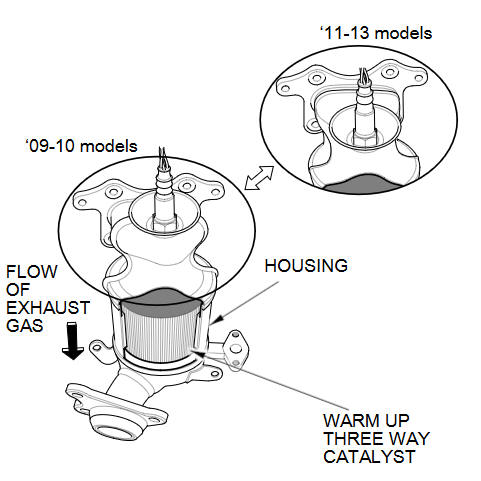

WU-TWC (ATTACHED TO THE CYLINDER HEAD)

UNDER-FLOOR TWC
