Honda Fit: Removal

  1. Drain the engine coolant.

  1. Remove the air cleaner.

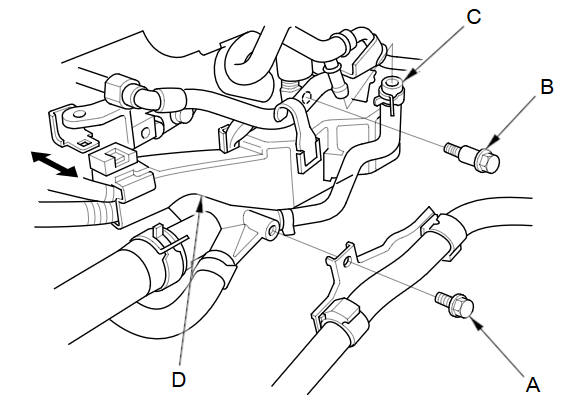

  1. Remove the heater hose clamp bracket mounting bolt (A) and the harness holder mounting bolt (B).

  1. Disconnect the water bypass hose (C), then remove the harness holder (D) from the bracket.

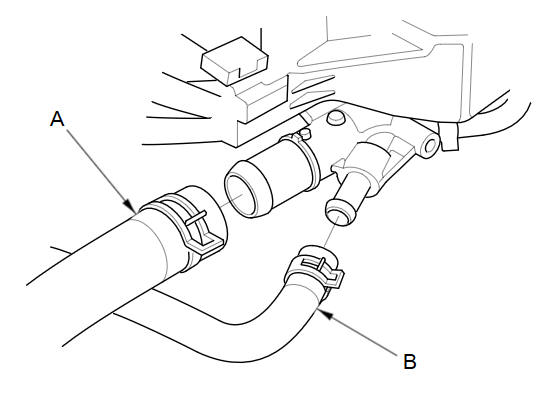

  1. Disconnect the upper radiator hose (A) and the water bypass hose (B).

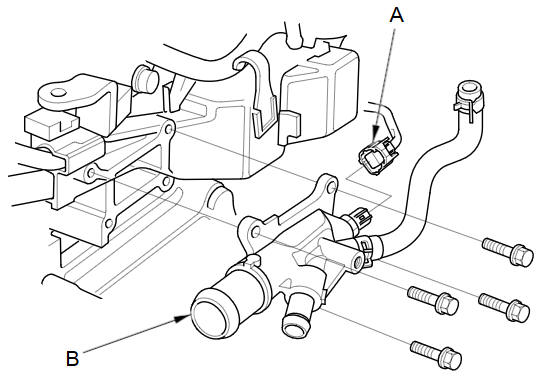

  1. Disconnect the ECT sensor 1 connector (A), then remove the water outlet (B).

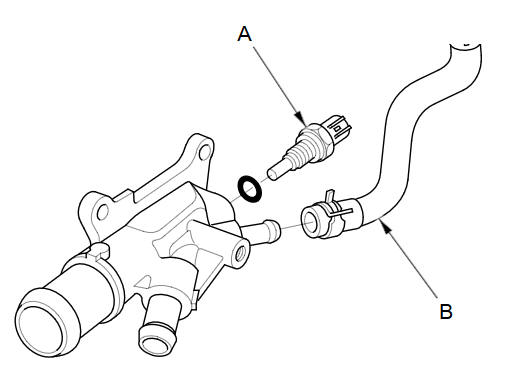

  1. Remove ECT sensor 1 (A) and the water bypass hose (B).
