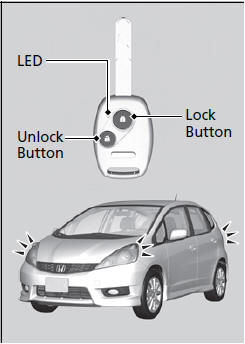

■ Locking the doors
Press the lock button.
Once
:
►Some exterior lights flash, all the doors and tailgate lock, and the security system sets.
Twice (within five seconds after the first
push):
►A beeper sounds and verifies the security system is set.
■ Unlocking the doors
Press the unlock button.
Once
:
►Some exterior lights flash twice, and the driver’s door unlocks.
Twice
:
►The remaining doors and tailgate unlock.
If you do not open a door within 30 seconds of unlocking the vehicle with the remote transmitter, the doors will automatically relock.
If the interior light switch is in the door activated position, the interior light comes on when you press the unlock button.
No doors opened: The light fades out after 30 seconds.
Doors relocked with the remote: The light goes off immediately.
The remote transmitter uses low-power signals, so the operating range may vary depending on the surroundings.
The remote will not lock the vehicle when a door or tailgate is open.
If the distance at which it works varies, the battery is probably low.
If the LED does not come on when you press a button, the battery is dead.

Models with remote transmitter
When you lock the driver’s door with a key, all of the other doors and tailgate lock at the same time. When unlocking, the driver’s door unlocks first. Turn the key a second time within a few seconds to unlock the remaining doors and the tailgate.

Models without remote transmitter
Fully insert the key and turn it.

■ Locking the driver’s door
Models with remote transmitter
Pull the lock tab rearward 1 or push the master door lock switch in the lock direction 2, and close the door.
Models without remote transmitter
Pull and hold the outside door handle, then pull the lock tab rearward 1.
Release the handle, then close the door.
■ Locking the passenger’s doors
Pull the lock tab rearward and close the door.
Models with remote transmitter
■ Lockout prevention system
The doors and the tailgate cannot be locked when the key is in the ignition switch, and any door or the tailgate is open.
Models with remote transmitter
When you lock the driver’s door, all the other doors and tailgate lock at the same time.
Make sure you have the key in your hand before locking the door to prevent it from being locked in the vehicle.
