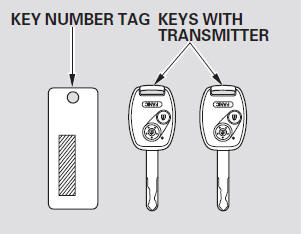

On Sport model

Your vehicle comes with the two ignition keys.

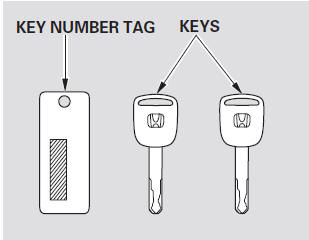

All models except Sport

You should have received a key number tag with your keys. You will need this key number if you ever have to get a lost key replaced. Use only Honda-approved key blanks.
These keys contain electronic circuits that are activated by the immobilizer system. They will not work to start the engine if the circuits are damaged.
• Protect the keys from direct sunlight, high temperature, and high humidity.
• Do not drop the keys or set heavy objects on them.
• Keep the keys away from liquids.
If they get wet, dry them immediately with a soft cloth.
All models except Sport
The keys do not contain batteries.
Do not try to take them apart.
