DEST button (when en route)
►DEST Menu 1 or DEST Menu 2
Enter a new destination using the Destination Menu screen even when you are en route.

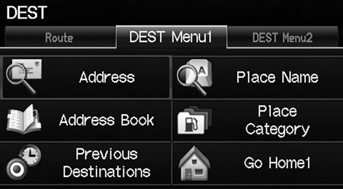

1. Select a method to enter a new destination.
► After entering a new destination, the address is displayed on the Calculate Route screen.
2. Select Set as Dest.
“Display Menu”,
“Display Navigation”

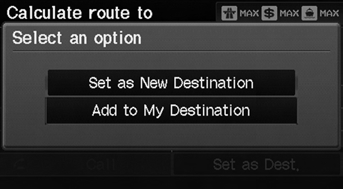

3. Select an option.
► The route is automatically recalculated and displayed on the map screen.
The following options are available:
• Set as New Destination:
Sets the location as your new destination.
• Add to My Destination:
Sets the location as a new waypoint.
System/Device Information
INFO button
► System/Device Information
View database, software, device, and vehicle identification information.
You will need this information when ordering a
map update. ...
Instrument Panel Indicators
The instrument panel has many indicators that give you important information
about your vehicle.
Malfunction Indicator Lamp
Low Oil Pressure Indicator
The engine can be severely damaged if th ...
Removal
Do the battery terminal disconnection procedure.
Remove the drive belt.
Remove the intake manifold.
Disconnect the alternator connector (A) and the p ...
