DEST button
► Place Name
Enter the name of a place (e.g., business, hotel, restaurant) stored in the map database to use as the destination.

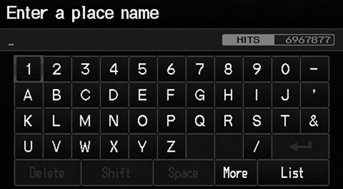

1. Enter a place name.
2. Select List to display a list of matching hits.
3. Select a place name from the list.
► If the place name is in multiple categories, the categories are displayed when you select it.
4. Set the route to your destination.
This option is convenient if you know the exact name of a place.
Select More to enter symbols and accented letters, select Space to enter a space character, or select Delete to remove the last character.

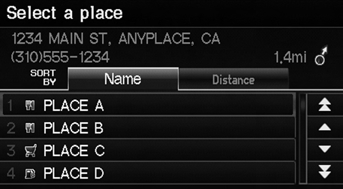

Once a name is entered and selected, select SORT BY Name or SORT BY Distance.
Matching letters are in yellow.
Place Name in Multiple Categories

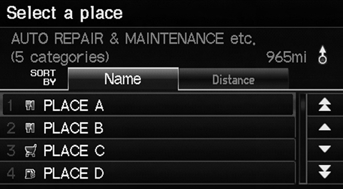

If the place name is in multiple categories in the map database, the following screen is displayed.
1. Select a place name.

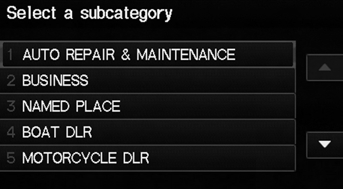

2. Select a subcategory.
3. Set the route to your destination.
Select SORT BY Name or SORT BY Distance.
Matching letters are in yellow.
