INFO button
► Setup ►Other
►Routing & Guidance►Edit Waypoint

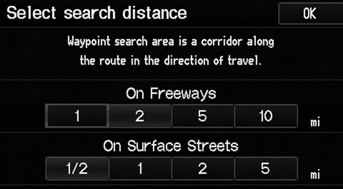

Search Area “Edit”
Select the distance from your highlighted route line (on either side of your route) that the system will search for a waypoint.
You can specify a different search distance for freeways and surface streets.

1. Select a search distance.
2. Select OK.
The following options are available:
• On Freeways: 1, 2, 5, or 10 miles can be set. Factory default is 2 miles.
• On Surface Street: 1/2, 1, 2, or 5 miles can be set. Factory default is 1/2 mile.
The search distance does not affect the search
range used for the Find Nearest voice commands
(e.g., say
“Find nearest gas
station”).
