INFO button
► Setup ►Other
►Color
Choose the color of the navigation map and system menus.
Select an item.
The following items are available: • Map
: Sets the color of the map screen.
• Menu
: Sets the color of the menu screens.
INFO button
► Setup ►Other

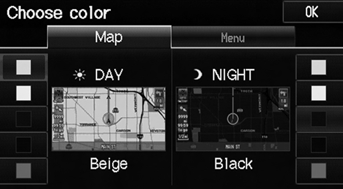

►Color►Map
Set separate map colors for Day and Night modes.
Select
Select a color for the map screen.
For Day mode
Set to White (factory default is Beige) to obtain the best daytime display contrast.
For Night mode
Set to Black (factory default) to obtain the best nighttime display contrast.
INFO button
► Setup ►Other

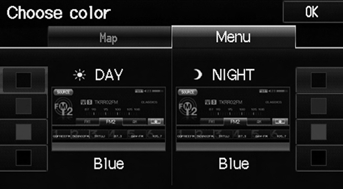

►Color►Menu
Set separate menu colors for Day and Night modes.
Select a color for the menu screens.
For Day mode
Set to Black (factory default is Blue) to obtain the best daytime display contrast.
For Night mode
Set to Black (factory default is Blue) to obtain the best nighttime display contrast.

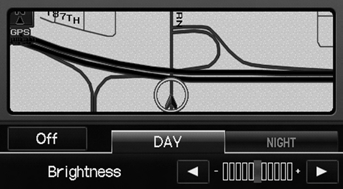

Set the screen brightness separately for Day and Night modes. Press the
(Display mode) button to cycle through the display modes (Day to Night to Off).
1. Press the button.
► The Brightness bar is displayed
for a few seconds.
2. Press the button again.
► Repeat the procedure to switch
the display modes.
► Select or
to adjust the
brightness.

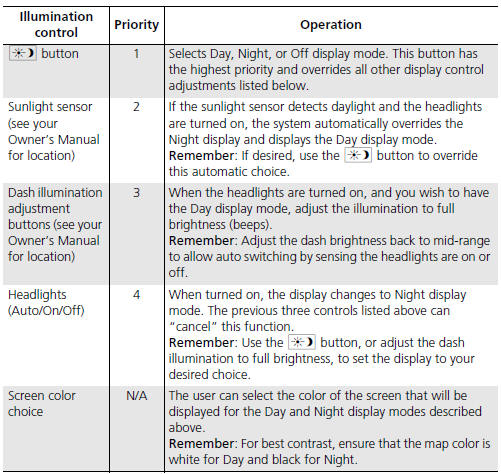

A visual guide helps you see the difference between Day and Night modes.
Recommended Settings
• Select mid-range for the dash illumination.
• Select White for the map Day display and Black for the map Night display.
