Honda Fit: Fuse Locations

If any electrical devices are not working, turn the ignition switch to LOCK (0 and check to see if any applicable fuse is blown.

Fuse locations are shown on the fuse box cover. Locate the fuse in question by the fuse number and box cover number.

Engine Compartment Fuse Box

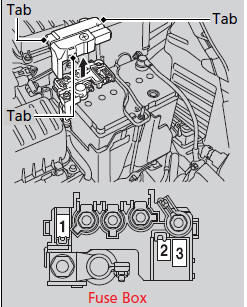

Pull up the cover by pushing the three tabs as


Pull up the cover by pushing the three tabs as shown.

Replacement of engine compartment fuses should be done by a dealer.

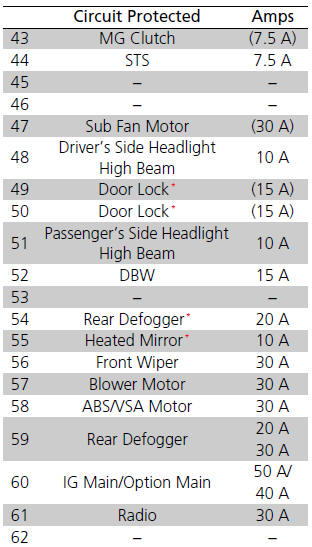

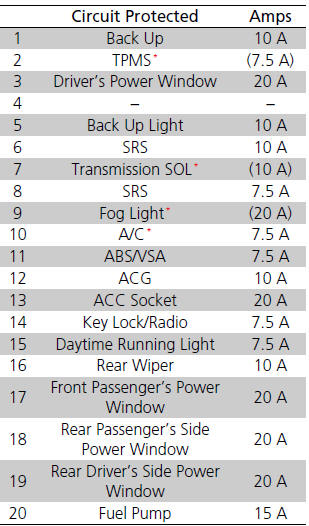

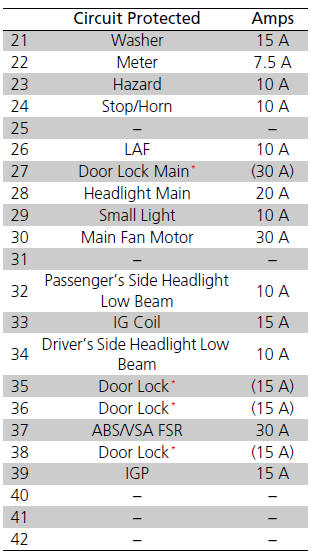

■ Circuit protected and fuse rating

Interior Fuse Box


Interior Fuse Box

Located behind the fuse lid. Pull the fuse lid


Located behind the fuse lid. Pull the fuse lid toward you.

Fuse locations are shown on the label on


Fuse locations are shown on the label on the side panel.

Locate the fuse in question by the fuse number and label number.

■ Circuit protected and fuse rating



Inspecting and Changing Fuses
