Honda Fit: Clutch Interlock Switch Replacement (M/T)

Second generation (2007-2026) / Honda Fit 2007-2026 Repair Manual / Powertrain / Transmission/Transaxle / Manual / Clutch Interlock Switch Replacement (M/T)

M/T model

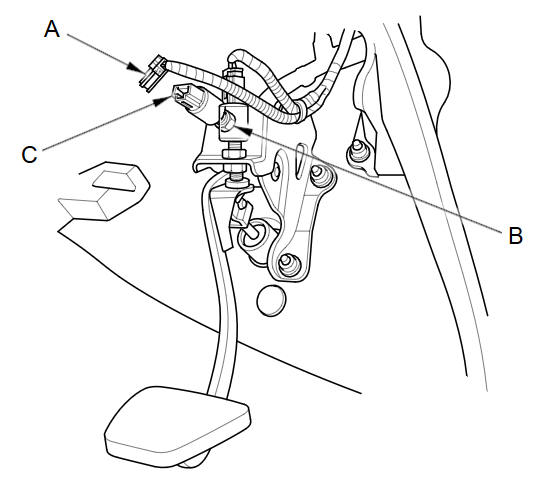

  1. Disconnect the 2P connector (A) from the clutch interlock switch.

  1. Loosen the locknut (B), then remove the clutch interlock switch (C).

  2. Install the clutch interlock switch and adjust the pedal height.
