Honda Fit: Clutch Pedal Position Switch Replacement (With Cruise Control(M/T))

Second generation (2007-2026) / Honda Fit 2007-2026 Repair Manual / Powertrain / Transmission/Transaxle / Manual / Clutch Pedal Position Switch Replacement (With Cruise Control(M/T))

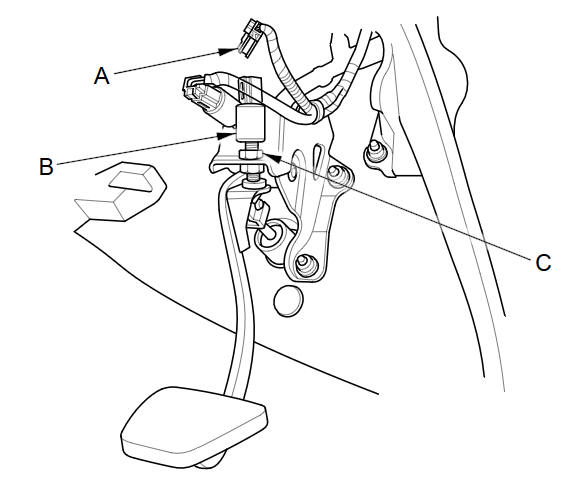

  1. Disconnect the 2P connector (A) from the clutch pedal position switch (B).

  1. Loosen the locknut (C), then remove the clutch pedal position switch.

  2. Install the clutch pedal position switch, and adjust the pedal height.
