Honda Fit: Clutch Hose Replacement (M/T)
NOTE:
-
Replace the clutch hose if it is twisted or cracked, or if it leaks.
-
Use fender covers to avoid damaging painted surfaces.
-
Do not spill brake fluid on the vehicle; it may damage the paint or plastic. If brake fluid does contact the paint or plastic, wash it off immediately water.
-
Do the battery removal procedure.
-
Remove the air cleaner housing.
-

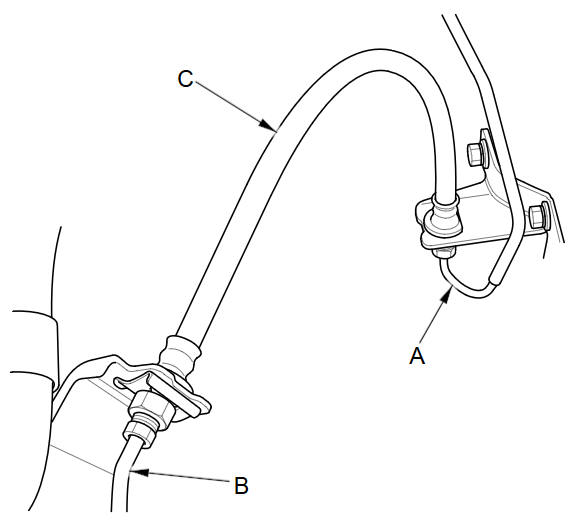

Disconnect the clutch hose (C) from the clutch line A and clutch line B.
-

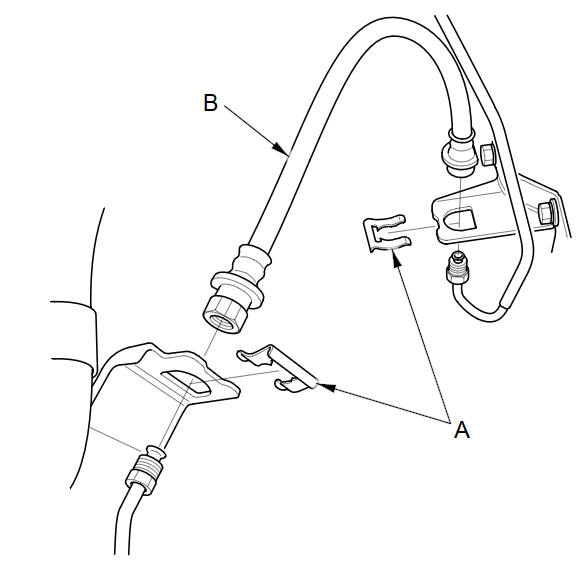

Remove and discard the clutch hose clips (A) from the clutch hose (B).
-
Remove the clutch hose from clutch hose brackets.
-

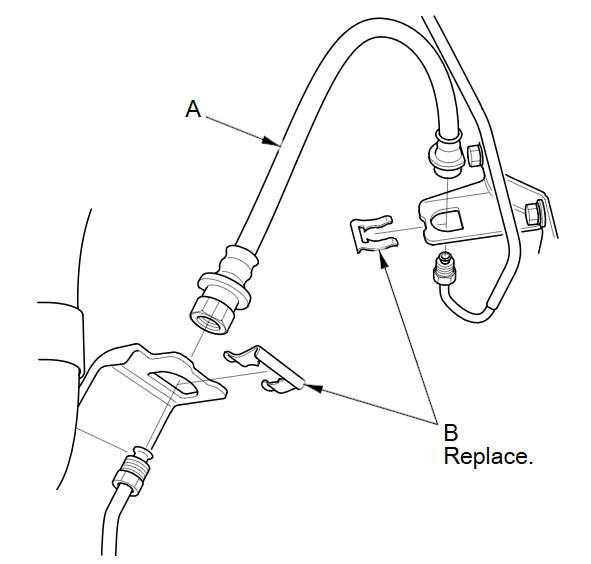

Install the clutch hose (A) with new clutch hose clips (B).
-

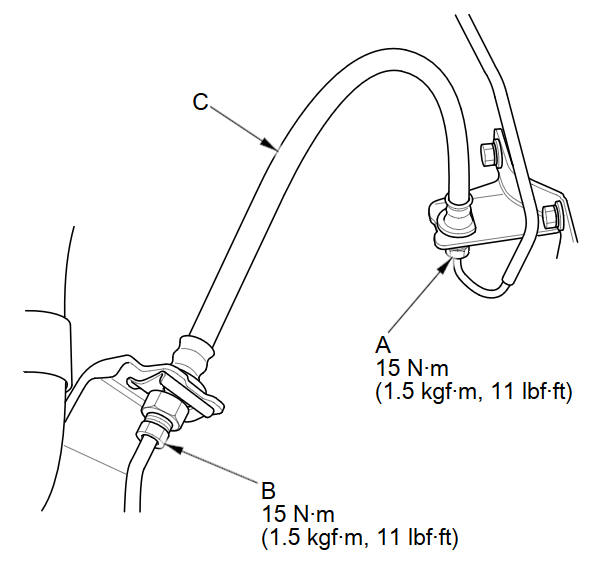

Connect the clutch line A and clutch line B to the clutch hose (C).
-
Bleed the clutch hydraulic system.
-
Do the following checks:
-
Check the clutch hose and line joint for leaks, and tighten if necessary.
-
Check the clutch hose for interference and twisting.
-
-
Install the air cleaner housing.
-
Do the battery installation procedure.
-
Test-drive the vehicle.
