Honda Fit: Output Shaft (Countershaft) Speed Sensor Replacement (M/T)

Second generation (2007-2026) / Honda Fit 2007-2026 Repair Manual / Powertrain / Transmission/Transaxle / Manual / Output Shaft (Countershaft) Speed Sensor Replacement (M/T)

M/T

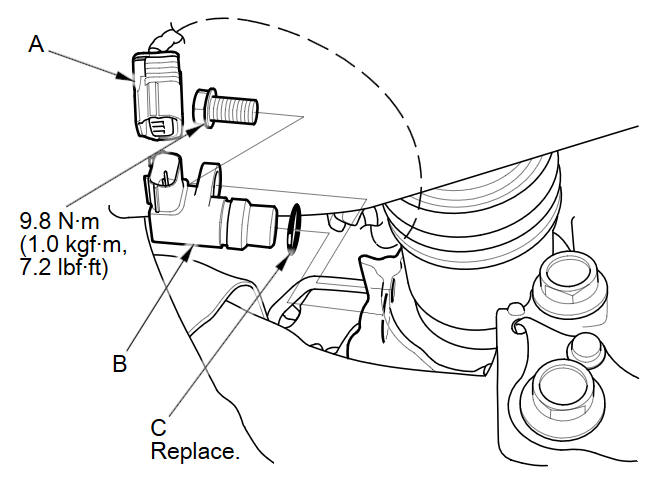

  1. Raise the vehicle on a lift.

  1. Disconnect the output shaft (countershaft) speed sensor connector (A).

  1. Remove the output shaft (countershaft) speed sensor (B).

  2. Install the parts in the reverse order of removal with a new O-ring (C).
