Honda Fit: Mainshaft Bearing and Oil Seal Replacement (M/T)
Special Tools Required
- Driver Handle, 15 x 135L 07749-0010000
- Bearing Driver Attachment, 37 x 40 mm 07746-0010200
- Bearing Driver Attachment, 52 x 55 mm 07746-0010400
- Adjustable Bearing Puller, 25пјЌ40 mm 07736-A01000B
-
Remove the differential assembly.
-

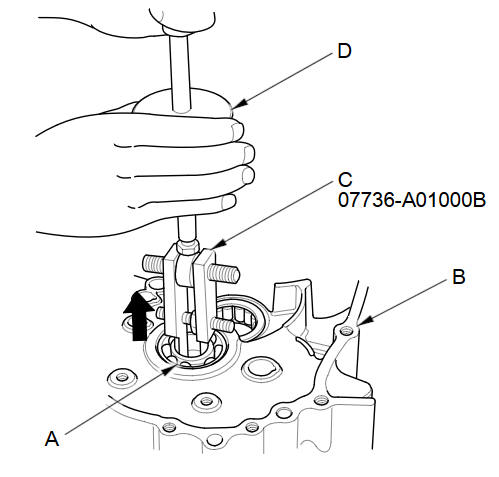

Remove the ball bearing (A) from the clutch housing (B) using the 25пјЌ40 mm adjustable bearing puller (C), and a commercially available 3/8''-16 UNF slide hammer (D).
-

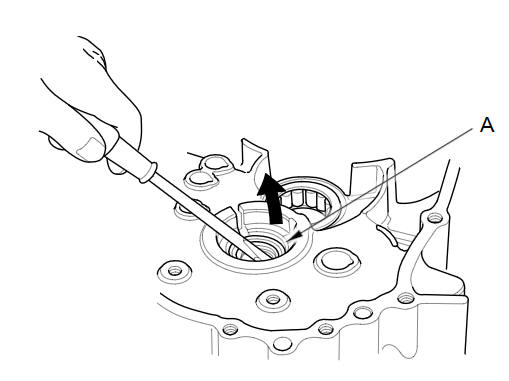

Remove the oil seal (A) from the clutch side.
NOTE: Be careful not to damage the clutch housing while removing the oil seal.
-

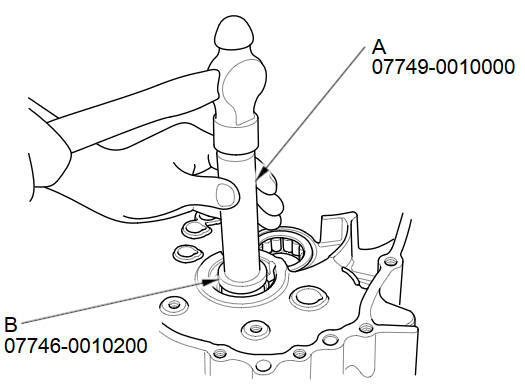

Drive in a new oil seal in from the transmission side using the 15 x 135L driver handle (A) and the 37 x 40 mm bearing driver attachment (B).
-

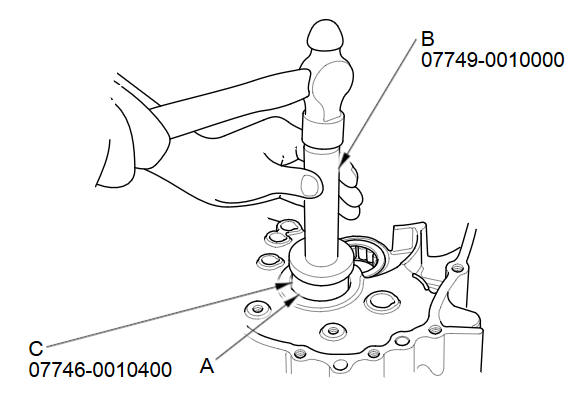

Drive in a new ball bearing (A) in from the transmission side using the 15 x 135L driver handle (B) and the 52 x 55 mm bearing driver attachment (C).
