Honda Fit: M/T Differential Backlash Inspection (M/T)

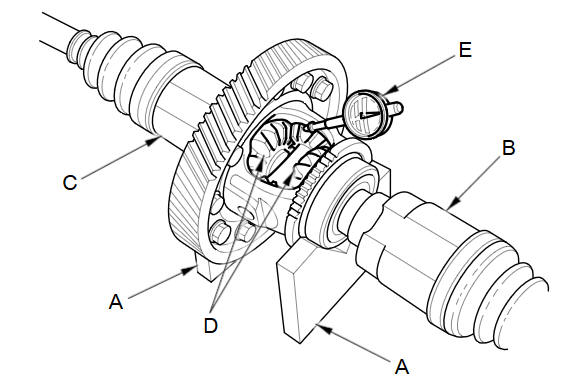

  1. Place the differential assembly on V-blocks (A), and install the right driveshaft (B) and the left driveshaft (C).

  1. Measure the backlash of both pinion gears (D) with a dial indicator (E). If the backlash is not within the standard, replace the differential carrier.

    Standard (New):

    0.05пјЌ0.15 mm (0.0020пјЌ0.0059 in)
