Honda Fit: Clutch Disc and Pressure Plate Installation
-
Temporarily install the clutch disc onto the splines of the transmission mainshaft. Make sure the clutch disc slides freely on the mainshaft.
-

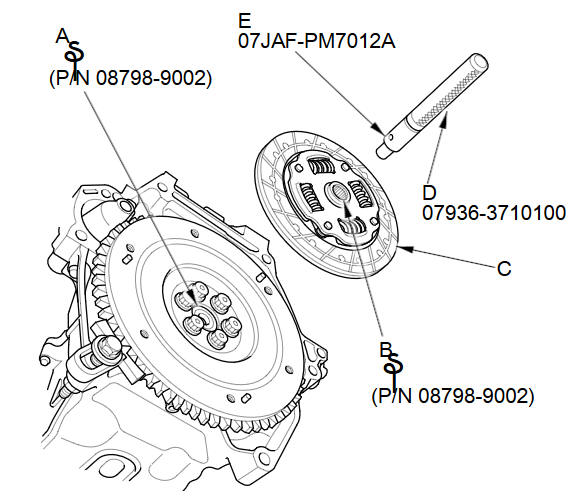

Apply a light coat of super high temp urea grease (P/N 08798-9002) to the crankshaft pilot bearing (A).
-
Apply super high temp urea grease (P/N 08798-9002) to the splines (B) of the clutch disc (C), then install the clutch disc using the remover handle (D) and the clutch alignment shaft (E).
NOTE: Wipe off any excess grease.
-

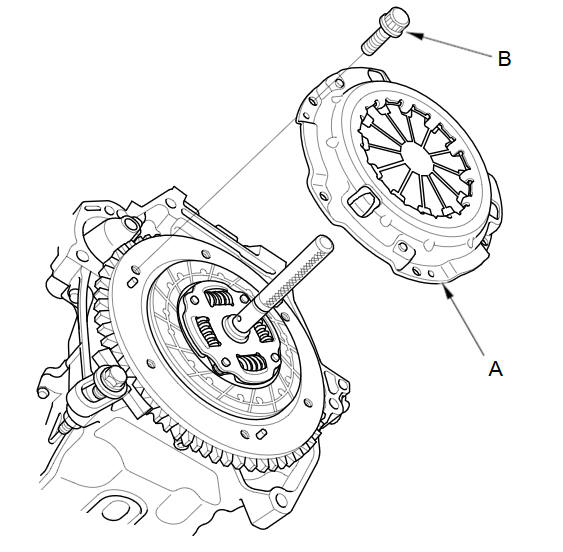

Install the pressure plate (A) and the mounting bolts (B) finger-tight.
-
Torque the mounting bolts in a crisscross pattern. Tighten the bolts in several steps to prevent warping the diaphragm spring.
PRESSURE PLATE MOUNTING BOLT TORQUE:
25 NВ·m (2.5 kgfВ·m, 18 lbfВ·ft)
-
Remove the ring gear holder (A), the remover handle, and the clutch alignment shaft (B).
-
Make sure the diaphragm spring fingers are all the same height.
-
Do the release bearing inspection, and replace it if necessary.
-
Install the transmission.
