Turn Signals

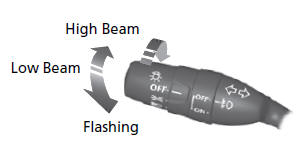

Turn Signal Control Lever
Lights
Light Control Switches
Wipers and Washers

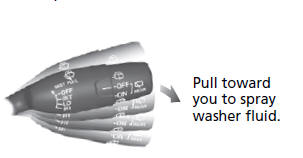

Wiper/Washer Control Lever
MIST
OFF
INT
: Low speed with intermittent
LO
: Low speed wipe
HI
: High speed wipe
Steering Wheel
● To adjust, pull the adjustment lever towards you, adjust to the desired position, then lock the lever back in place.
Tailgate
● To open the tailgate, pull the tailgate open handle, and lift up.
Power Door Mirrors
● With the ignition switch in ON ,
move
the selector switch to L or R.
● Push the appropriate edge of the adjustment switch to adjust the mirror.
Power Windows
● With the ignition switch in ON (w, open and close the power windows.

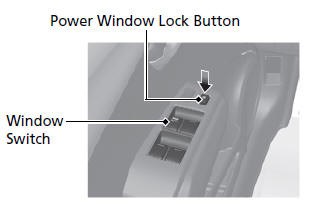

● If the power window lock button is in the off position, each passenger’s window can be opened and closed with its own switch.
● If the power window lock button is in the on position, each passenger’s window switch is disabled.

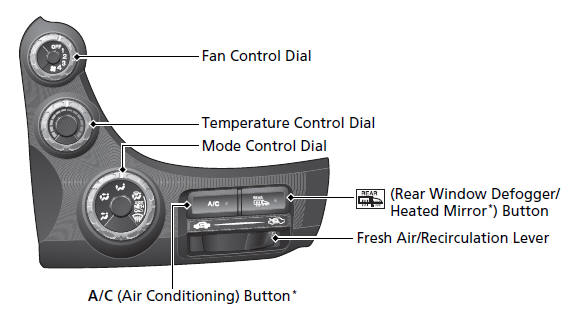

Heating and Cooling* System
● Rotate the fan control dial to adjust the fan speed.
● Rotate the Mode control dial ( /
/
/
/ ) to select the vents air flows
from.
● Rotate the temperature control dial to adjust the temperature.
● Rotate the fan control dial to OFF to turn the system off.
● Rotate the mode to defrost the
windshield.
Clock
Models without navigation system
1 Press the CLOCK button until the displayed time begins flashing.
2 Press the 1 (Hour) or 2 (Minute) button to set the time. Press the 3 (Reset) button to set the time to the nearest hour.
3 Press the CLOCK button again to set the time.
Models with navigation system
The navigation system receives signals from GPS satellites, updating the clock automatically.
Accessories and Modifications
WARNING
Improper accessories or modifications can
affect your vehicle’s handling, stability, and
performance, and cause a crash in which
you can be seriously hurt or killed.
Follow all instru ...
DOT Tire Quality Grading (U.S. Vehicles)
The tires on your vehicle meet all U.S. Federal Safety Requirements. All
tires are
also graded for treadwear, traction, and temperature performance according
to Department of Transportation (DOT) ...
Manual Transmission
The manual transmission is synchronized in all forward gears for smooth operation.
It has a lockout so you cannot shift directly from fifth to reverse. When shifting
up or down, make sure you pu ...
